Description

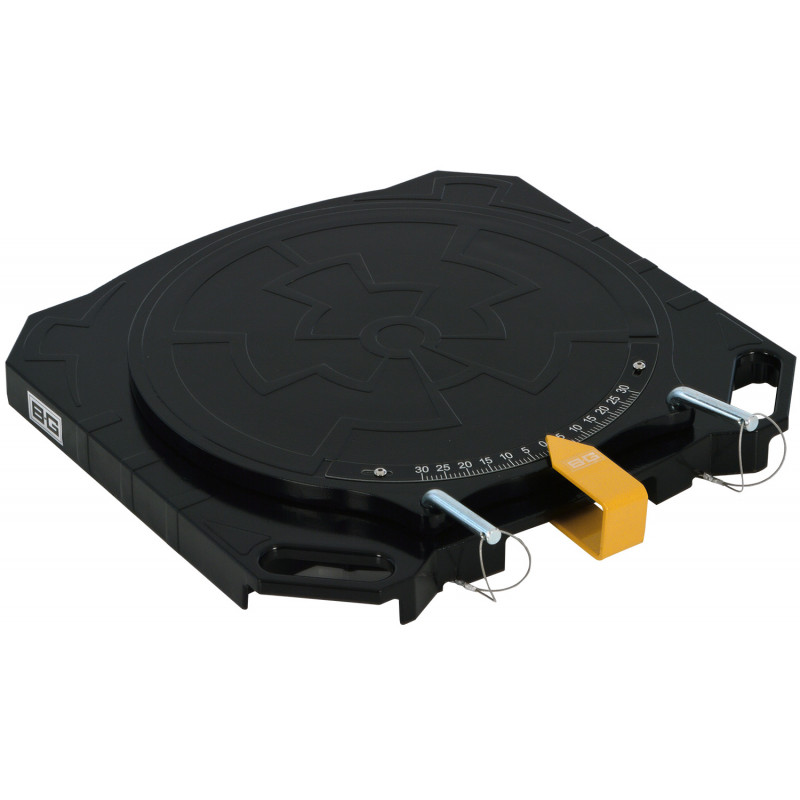

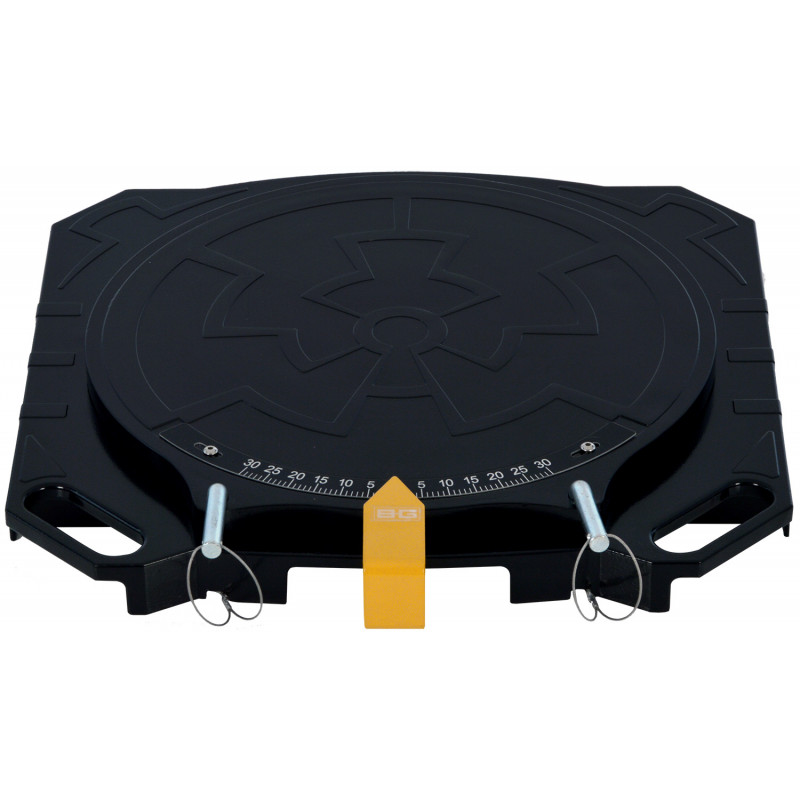

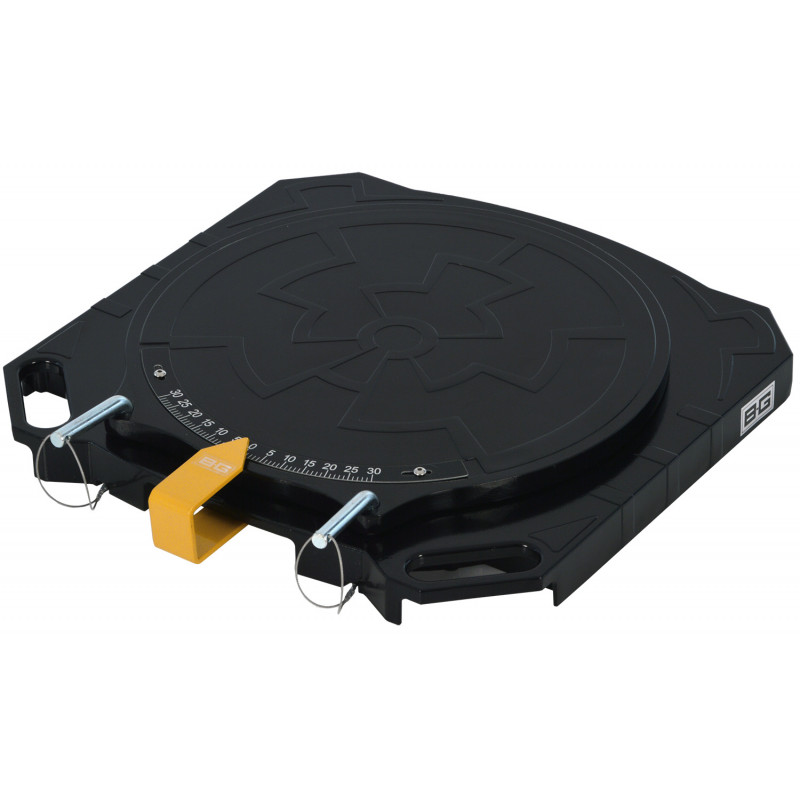

Designed for measuring castor, camber and kingpin inclination angles, the B-G Turn Plates are an essential tool when setting up a vehicle to achieve accurate measurements.
The top surface of the B-G Turn Plates sits on multiple ball bearings which allows it to float freely in all directions, enabling bind-free movement of the wheel & tyre for accurate suspension and geometry adjustment.

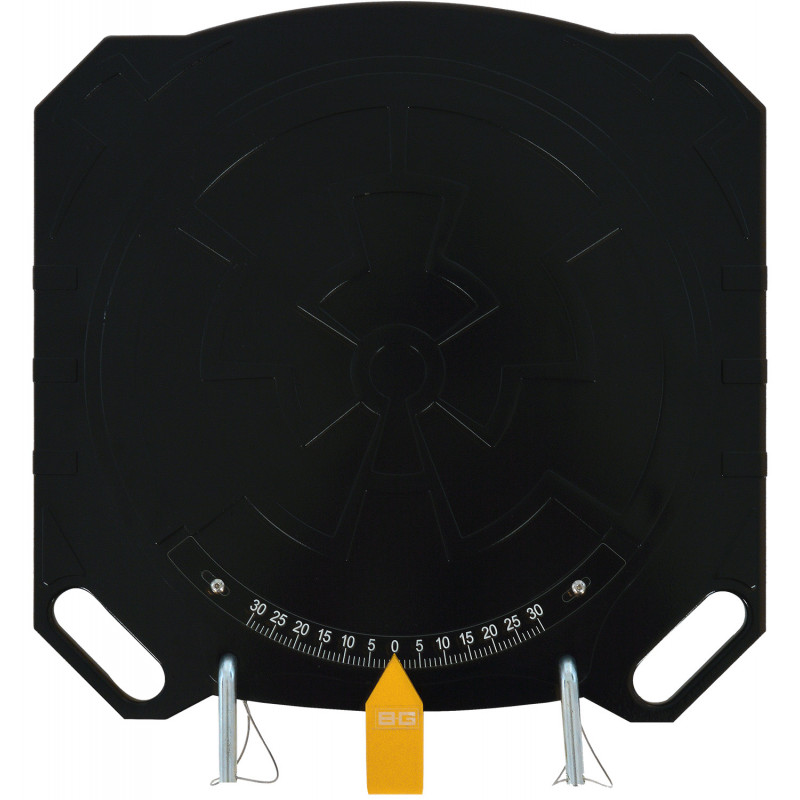

Constructed from cast aluminium with a black finish, the Turn Plates are fitted with an adjustable laser etched dial which can be used to measure up to 30 degrees of rotation in each direction.
Sold in pairs, the B-G Turn Plates have a maximum weight capacity of 2000kg (4409lb) each, allowing a vehicle weighing up to 4000kg (8818lb) to be positioned on top of the Turn Plates.

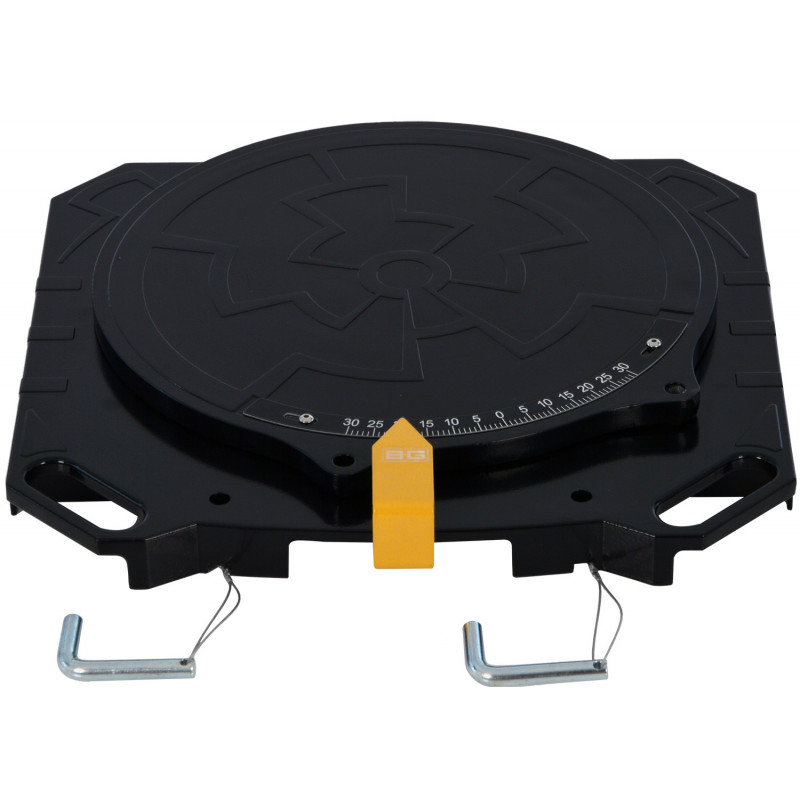

Pre-machined handles and locking pins allow for easy storage and transportation of the B-G Turn Plates.
Specification
Part Number
BGR312
Material
Aluminium
Height
47mm – 1.85”
Width
395mm – 15.55”
Length
390mm – 15.35”
Weight
5.60kg – 12.34lb per turn plate
Loading Capacity
2000kg - 4409lb per turn plate
Table Diameter
335mm – 13.19”
Table Rotation
360 Degrees
Table Side Movement
61mm – 2.40”
Warranty
This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not affect your statutory rights.
